lchi 3D pRiNTER
The NPPower Malachite is an affordable, small, and highly efficient table-top 3D printer for metal, making it ideal for small enterprises, educational institutions, designers, laboratories, and can also prove to be invaluable to large scale operations with its printing flexibility and downtime minimisation.
By applying the LPBF (Laser Powder Bed Fusion) method, a 200 W fiber laser, and galvo scanner, the 3D printer allows for swift and efficient creation of complex and unique objects that result in thin walled as well as intricate lightweight designs. With its extraordinary printing flexibility, it is suitable for all non-reactive metals such as Cobalt-Chrome, stainless steel, Bronze, Brass, Nickel, etc., furthermore offering a layer thickness ranging from 15 to 85 µm. The entire process is additionally accelerated by a double-piston powder loading system combined with an intuitive interface, making the operating of the Malachite simple and straightforward.
|Print volume (D x H)||Ø125 x 100 mm|
|Print layer thickness||15 – 85 µm|
|Laser power||200 W|
|Inert gas||Argon, Nitrogen|
|Inert gas supply||min 25 L/min @ 3 bar|
|Inert gas consumption||< 0,3 L/min @ 3 bar|
|Production process||LPBF ( Laser Powder Bed Fusion)|
|Printing material||CoCr, stainless steel, bronze, etc.|
|Operating voltage||110/230 V|
|Frequency||50 Hz/60 Hz|
|Maximum current||16 A|
|Interfaces||USB type A, RJ-45 ethernet connection|
|Inert gas connection||Ø6 mm soft tube connector|
|Machine size (W x D x H)||715 x 705 x 1020 mm|
HOw iT WoRkS
The Malachite 3D printer produces solid metal objects by applying the LPBF – Laser Powder Bed Fusion method, where a coating mechanism distributes very thin layers of metal powder onto a build plate, which is lowered layer by layer along the Z axis. Each layer of the metal poweder is then in turn melted in the required position for the object by selectively melting the metal powder with the help of a high-power laser beam and galvo scanner, directing the laser beam.
Why you NEed the lchi
Minimize lead time and downtime
Reduce production costs and save on material
Rapidly make functional prototypes and end-use production parts
Cut down on postprocessing and material waste
Create light-weight thin-walled freeform geometries with hidden channels or voids, challenging internal passages and features
What’s bESt ABout it
Suitable for all non-reactive metals
Incredibly low inert gas consumption
Free software updates
No hidden fees and subscriptions
Customisable colour scheme to fit your company’s needs
MIS - International industrial fair
More to come soon.
IFAM - International trade fair of automation & mechatronic
This time NPPower will be exhibiting closer to home, at the IFAM – International trade fair of automation & mechatronic in the Ljubljana Exhibition and Convention Center in Slovenia taking place from 7. to 9. March 2023.
Check us out at booth A-401!
Join NPPower at the official unveiling of the Malachite 3D printer at Formnext 2022!
You can visit us in exhibition hall 12 at booth C58 from the 15. – 18. November in Frankfurt, Germany.
Ask about NPPower at Formnext 2022!
ArEaS oF APPliCaTION

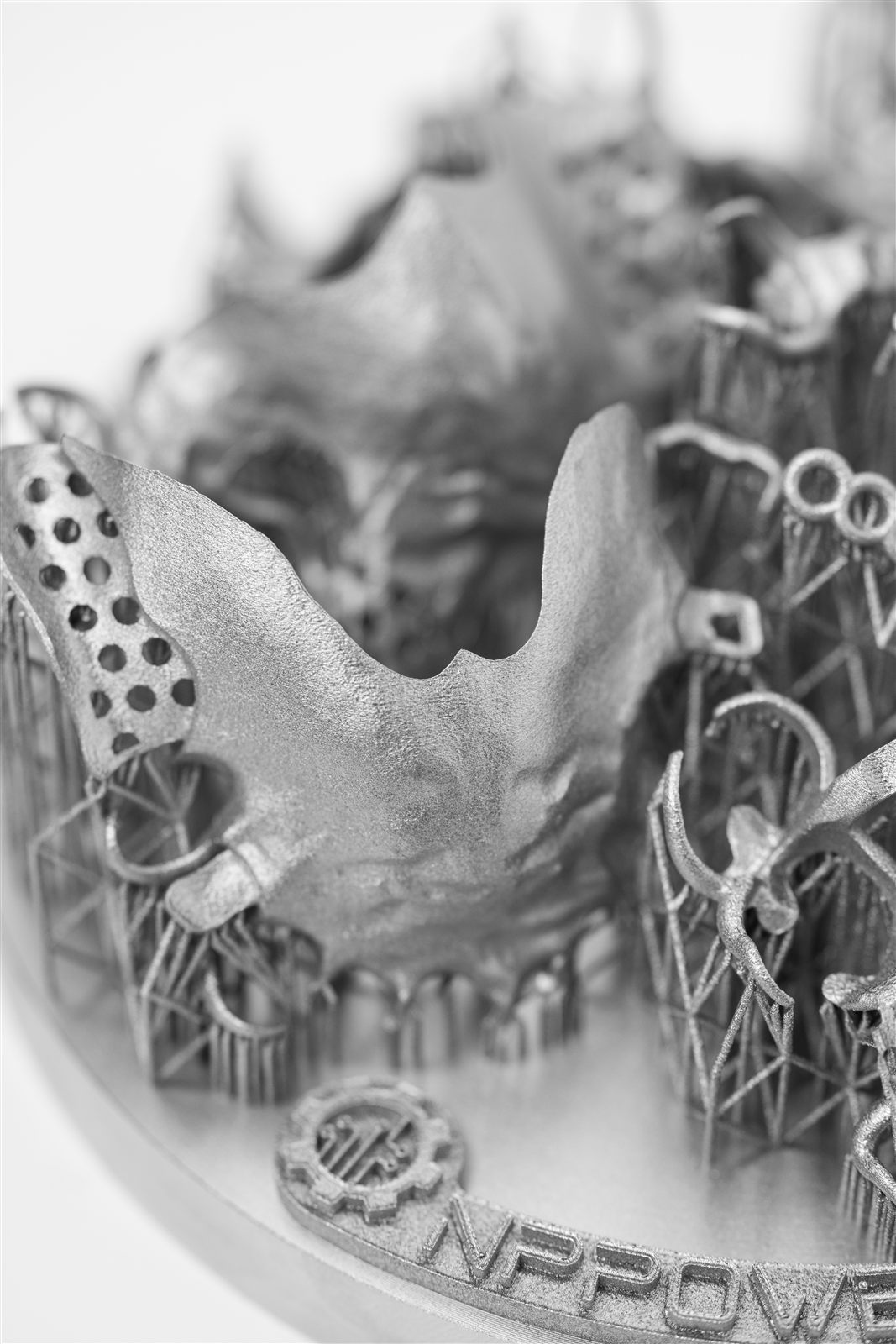

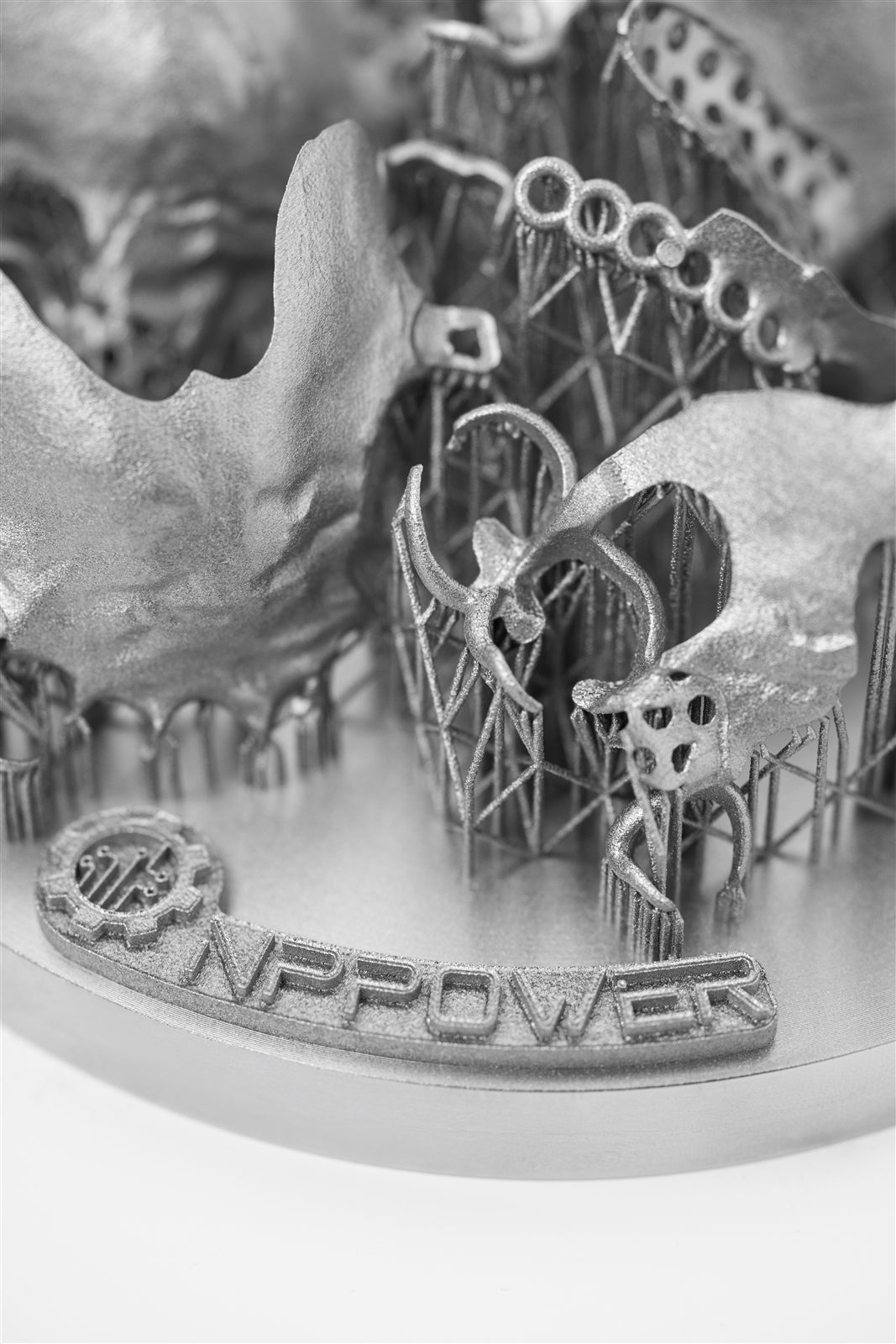

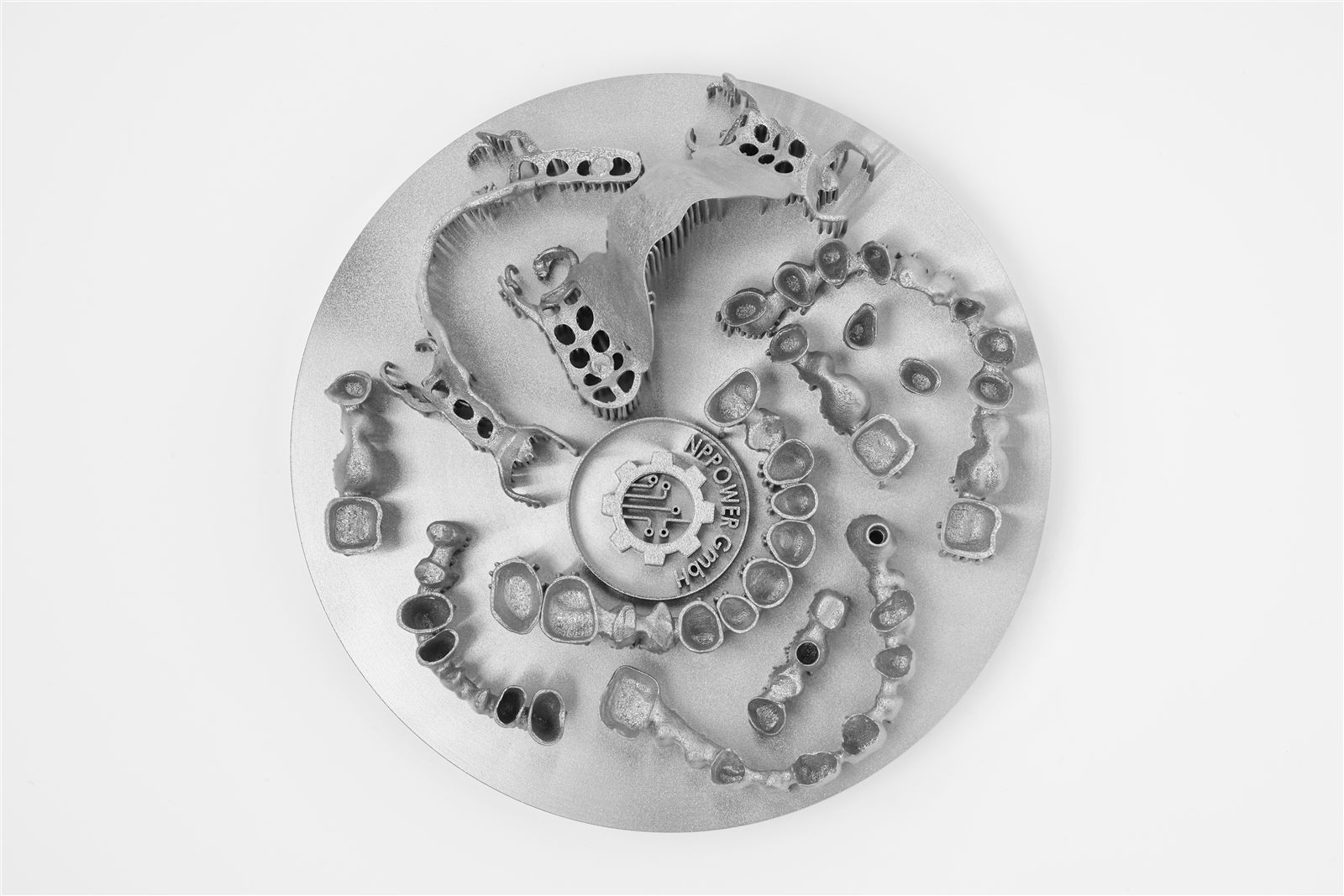

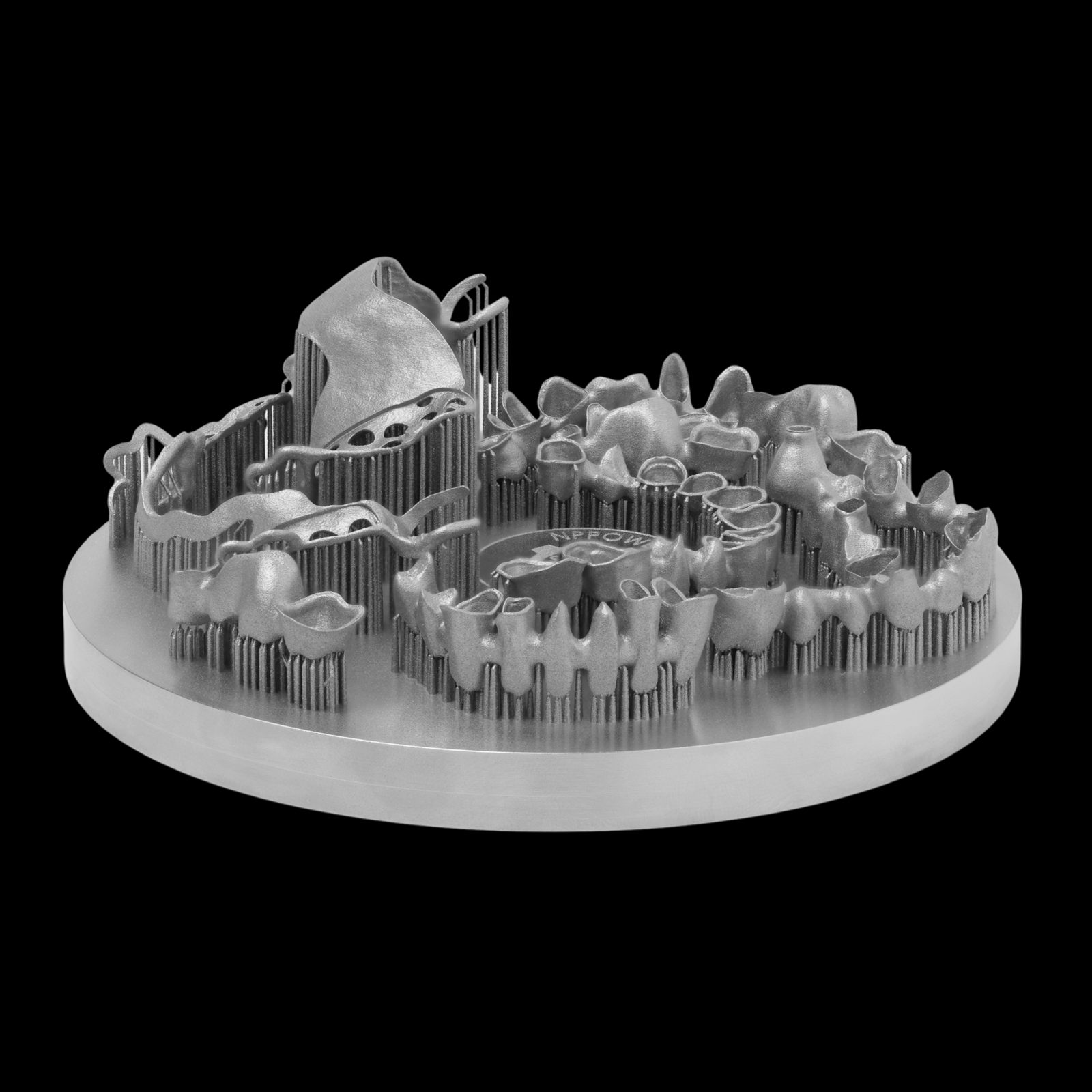

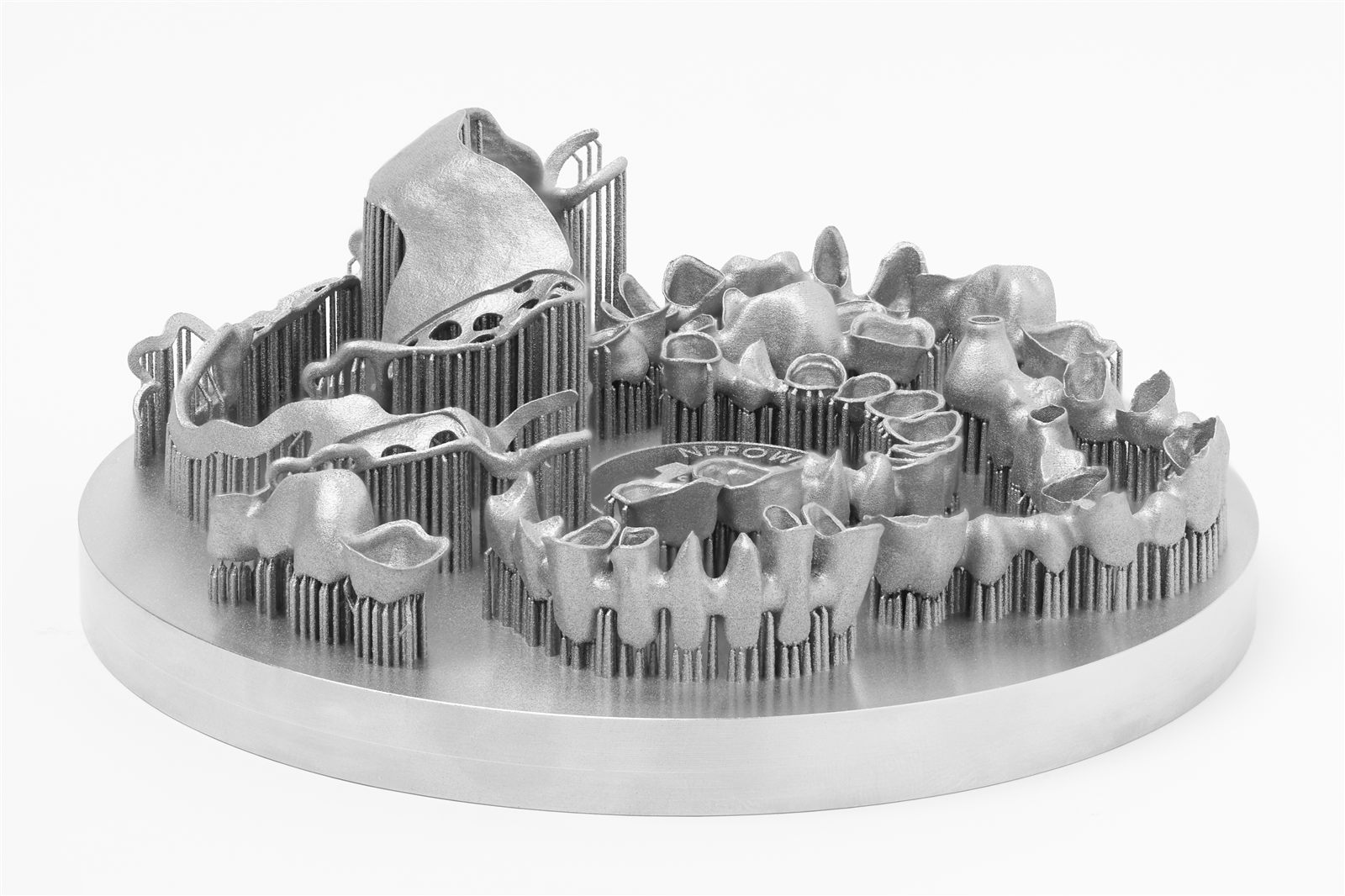

3D printed components are built layer by layer, making it possible to design light-weight thin-walled freeform geometries, hidden channels or voids, challenging internal passages and features that could not be achieved using conventional manufacturing techniques such as casting or machining.
LPBF shows clear advantages for rapid prototyping, as it decreases lead-time and parts can be built in a matter of hours, as well as production manufacturing by saving on material and significantly reducing costs by building parts additively to form near net-shape components rather than by removing waste material. The result is fully dense durable metal parts that can be used as functional prototypes as well as end-use production parts.
By enabling complex geometries, unique and intricate designs, as well as being able to process a wide range of alloys, 3D printing of metal has presented itself as a fantastic new way of creating stunning jewellery and accessories. Allowing easy modification and exact repetition it increases accuracy as well as poses no limit to creativity.
